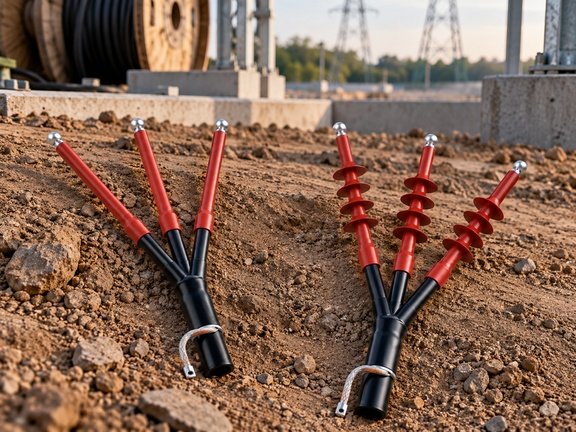

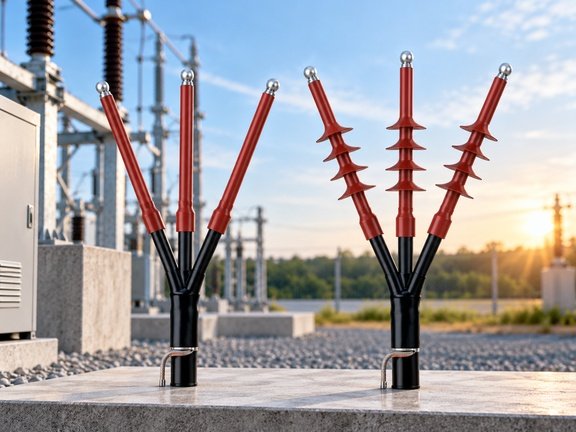

Outdoor Termination Kit

An Outdoor Termination Kit is an important cable accessory used to create a secure, insulated and reliable termination for medium- and high-voltage power cables. Electrotech supplies heat shrink termination solutions designed for 11kV cable applications, including outdoor installations where cables are connected to transformers, switchgear, electrical equipment or overhead distribution systems. The offered 11kV outdoor termination kit is suitable for polymeric cable insulation such as XLPE and EPR and is available for different cable configurations. Electrotech also offers indoor termination versions for applications where cable termination is required inside electrical installations.

11kV Outdoor Termination Kit Using Heat Shrink Technology

Heat shrink technology provides a practical method for terminating medium-voltage cables while helping maintain insulation and protection around the prepared cable end. The termination components are positioned over the cable and shrunk using controlled heat to form a close-fitting protective arrangement.

Electrotech's 11kV outdoor termination kit is intended for single-core polymeric cables using XLPE or EPR insulation. The solution can accommodate cables with copper wire or copper tape screens and can be used with armoured, wire-armoured, braided or unarmoured cable constructions, depending on the selected kit specification. Similar heat shrink outdoor termination systems are also used for 11kV cable termination kit installations at pole-top and overhead-line applications.

Suitable for XLPE and EPR Cables

Modern power distribution systems commonly use polymeric insulated cables because of their electrical and mechanical characteristics. The correct termination kit must match the cable's voltage rating, insulation type, conductor size, screening arrangement and construction.

Our outdoor cable termination kit is designed for suitable MV-HV single-core XLPE/EPR cables. Selecting the correct kit according to the actual cable specification helps ensure that the termination arrangement is compatible with the installation. Cable size is an especially important consideration because termination components are supplied in different configurations for different conductor dimensions.

For this reason, customers should provide complete cable details when selecting an 11kV cable termination kit, including conductor size, cable construction, insulation type and whether the cable is armoured or unarmoured.

Key Features of the Outdoor Termination Kit

The heat shrink-based termination solution offers several practical features for medium-voltage cable installations:

• Suitable for 11kV medium/high-voltage cable applications
• Designed for single-core polymeric XLPE/EPR cables
• Compatible configurations for screened cables
• Suitable for armoured and unarmoured cable arrangements
• Heat shrink technology for close-fitting cable protection
• Available for outdoor termination applications
• Indoor termination versions are also available
• Different sizes and configurations can be selected according to cable specifications

Electrotech's product range includes outdoor cable termination kit solutions, indoor termination kits and other cable jointing products for 11kV and 33kV systems.

Applications of 11kV Outdoor Termination Kits

An HT outdoor termination kit can be used wherever medium-voltage cables need to be safely terminated in an outdoor electrical network. Typical applications include:

Power Distribution Networks

Termination kits are used at suitable connection points in medium-voltage distribution systems, helping connect cables with electrical equipment while maintaining the required insulation and protection.

Industrial Electrical Systems

Factories and industrial facilities may use 11kV cables for power distribution. Proper cable termination is important for maintaining reliable electrical connections within such installations.

Transformer Connections

Medium-voltage cables can require termination before connection to transformers and associated electrical equipment. The selected termination arrangement must correspond to the cable and equipment specifications.

Switchgear and Electrical Equipment

Cable terminations provide the interface between power cables and equipment such as MV switchgear and cable boxes. Heat shrink termination systems are available for these types of MV-HV applications.

Outdoor and Pole-Top Installations

Outdoor termination systems can be used for cable installations exposed to environmental conditions, including suitable pole-top and overhead-line applications.

Why Proper Cable Termination Matters

A cable termination is more than simply connecting a cable to electrical equipment. It must provide appropriate insulation, electrical continuity and protection around the prepared cable end. An incorrectly selected or installed termination can affect the reliability of an electrical system.

The termination kit should therefore be selected according to the cable manufacturer's specifications and the requirements of the installation. Proper preparation, component positioning and installation procedures are equally important for achieving dependable performance.

Choose the Right 11kV Cable Termination Kit

Electrotech understands that cable termination requirements vary between projects. Cable size, conductor construction, insulation, screen arrangement, armour and installation environment should all be considered before selecting a kit. Electrotech Trading supplies cable jointing and termination solutions for electrical, industrial, commercial and infrastructure applications and provides technical assistance for selecting suitable products as an outdoor cable termination kit supplier.

Whether you need an 11kV outdoor termination kit for an outdoor power distribution project or an indoor version for an internal electrical installation, choosing a compatible product is essential.
